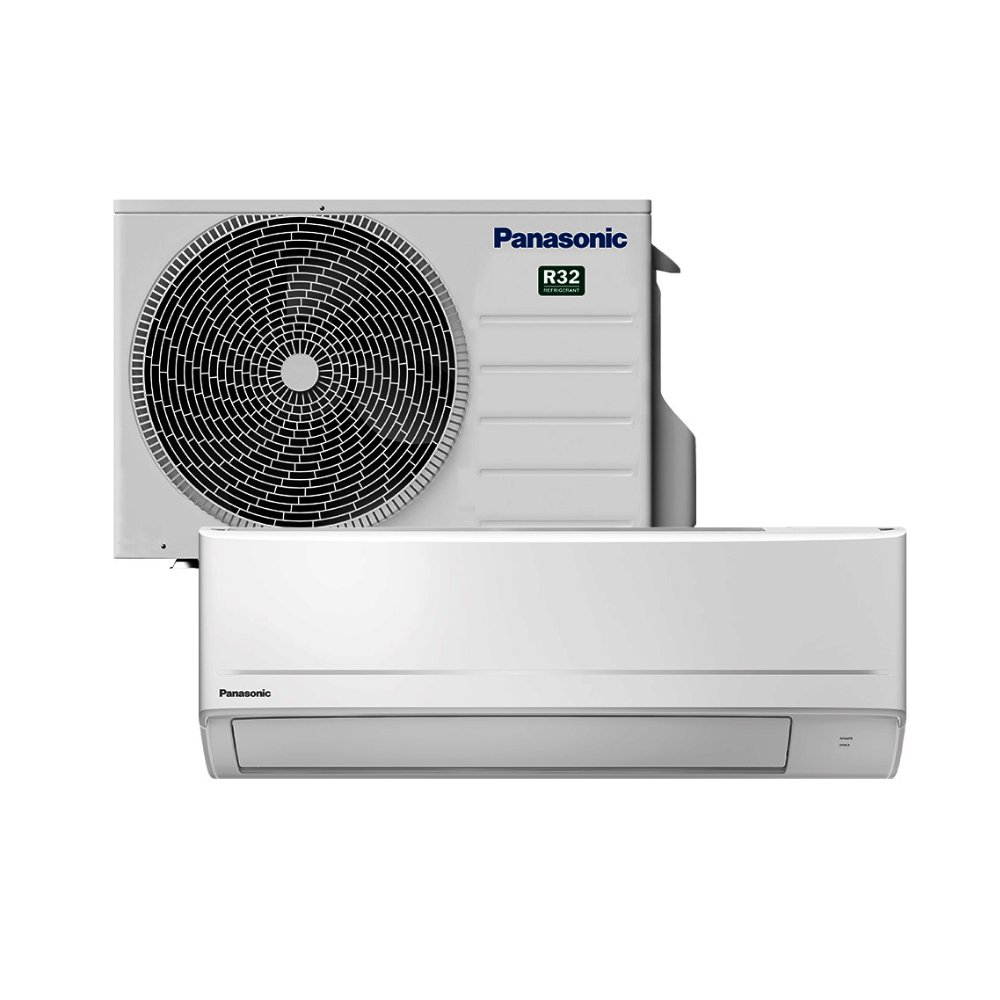

Aire Acondicionado Panasonic BZ Super - Compact - R32 - 3.40 kW - Imagen 2

Aire Acondicionado Panasonic BZ Super – Compact – R32 – 3.40 kW

Name: Aire Acondicionado Panasonic BZ Super - Compact - R32 - 3.40 kW
SKU: 2937
Availability: InStock

€677.60

Diseño compacto, silencioso y elegante. Aire más limpio con filtro PM2,5. Gran ahorro de energía: A++. Equipado con Aerowings para ajustar la dirección del flujo de aire, tiene una gran eficiencia energética, refrigeración hasta -10 °C y la conveniencia del control opcional por voz e Internet.

Categorías: Aire acondicionado, Split/ Pared

Características Técnicas

Diseño compacto con tan solo 779 mm de ancho
Aire más limpio con filtro PM2,5
Solo 20 dB(A)
Aerowings que permite cambiar la dirección del chorro de aire
Gran eficiencia energética
Refrigeración hasta a -10 °C
Control opcional mediante voz y a través de Internet

BZ SUPER-COMPACT · R32
		3.40 kW
Kit		KIT-BZ35-XKE
Cooling capacity (Nominal)	kW	3,40
Cooling capacity (Min)	kW	0,85
Cooling capacity (Max)	kW	3,90
EER (Nominal) (1)	W/W	3,18
EER (Min) (1)	W/W	3,54
EER (Max) (1)	W/W	3,05
SEER (2)		6,10 A++
Pdesign (cooling)	kW	3,40
Input power cooling (Nominal)	kW	1,07
Input power cooling (Min)	kW	0,24
Input power cooling (Max)	kW	1,28
Annual energy consumption cooling (3)	kWh/a	195
Heating capacity (Nominal)	kW	3,84
Heating capacity (Min)	kW	0,80
Heating capacity (Max)	kW	4,40
Heating capacity at -7°C	kW	2,60
COP (Nominal) (1)	W/W	3,69
COP (Min) (1)	W/W	4,10
COP (Max) (1)	W/W	3,41
SCOP (2)		4,20 A+
Pdesign at -10°C	kW	2,40
Input power heating (Nominal)	kW	1,04
Input power heating (Min)	kW	0,20
Input power heating (Max)	kW	1,29
Annual energy consumption heating (3)	kWh/a	800

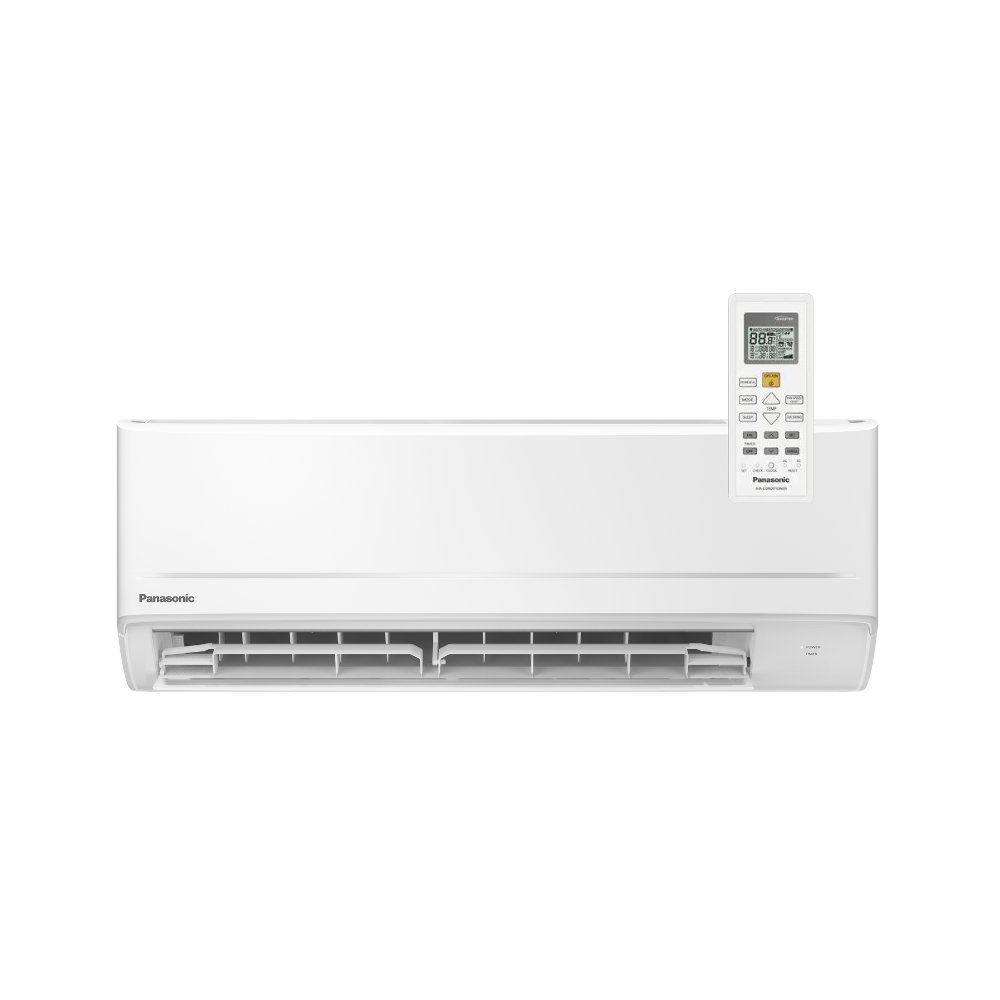

Indoor unit		CS-BZ35XKE
Indoor power source	V	230
Indoor recommended fuse	A	16
Indoor connection indoor / outdoor	mm²	4 x 1,5
Indoor air flow (Cool)	m³/min	10,8
Indoor air flow (Heat)	m³/min	11,3
Moisture removal volume	L/h	2,0
Indoor sound pressure (Cool -Hi) (4)	dB(A)	38
Indoor sound pressure (Cool -Hi) (4)	dB(A)	38
Indoor sound pressure (Cool -Lo) (4)	dB(A)	30
Indoor sound pressure (Cool -Q-Lo) (4)	dB(A)	20
Indoor sound pressure (Heat -Hi) (4)	dB(A)	38
Indoor sound pressure (Heat -Lo) (4)	dB(A)	33
Indoor sound pressure (Heat -Q-Lo) (4)	dB(A)	25
Indoor dimension (Height)	mm	290
Indoor dimension (Width)	mm	779
Indoor dimension (Depth)	mm	209
Indoor net weight	kg	8

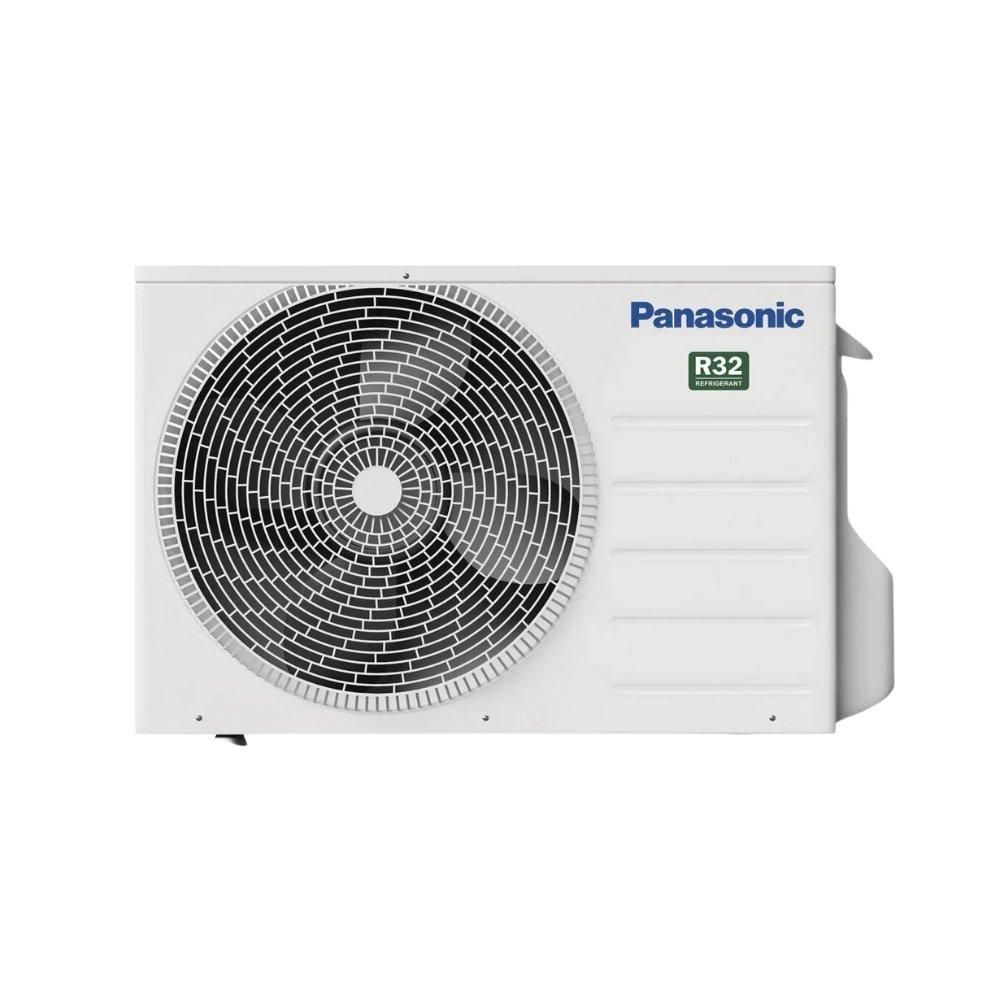

Outdoor unit		CU-BZ35XKE
Outdoor air flow (Cool)	m³/min	31,1
Outdoor air flow (Heat)	m³/min	31,1
Outdoor sound pressure (Cool -Hi) (4)	dB(A)	48
Outdoor sound pressure (Cool -Hi) (4)	dB(A)	48
Outdoor sound pressure (Heat -Hi) (4)	dB(A)	50
Outdoor dimension (Height) (5)	mm	542
Outdoor dimension (Width) (5)	mm	780
Outdoor dimension (Depth) (5)	mm	289
Outdoor net weight	kg	25
Pipe diameter (Liquid)	Inch (mm)	1/4 (6,35)
Pipe diameter (Gas)	Inch (mm)	3/8 (9,52)
Pipe length range	m	3 ~ 15
Elevation difference (in/out) (6)	m	15
Pipe length for additional gas	m	7,5
Additional gas amount	g/m	10
Refrigerant (R32) / CO2 Eq.	kg / T	0,67 / 0,45
Operating range (Cool – Min)	°C	-10
Operating range (Cool – Min)	°C	-10
Operating range (Cool – Max)	°C	+43
Operating range (Heat – Min)	°C	-15
Operating range (Heat – Max)	°C	+24
